ALR-W60-2L2T
Compact Precision for Light Payloads.
- 60 kg rated load capacity
- Compact precision design for light payloads
- Forward and backward movement with in-place rotation
- Compact dimensions: 710 × 510 × 305 mm
- Maximum speed up to 3.0 m/s
Overview
The ALR-W60-2L2T is a compact latent lifting AMR designed for precise pallet transport in industrial environments. With reliable SLAM navigation, precise stopping accuracy, and a robust safety system, it delivers stable and efficient automation for warehouses and production facilities.
Features
- Motor-driven latent lifting mechanism
- Bidirectional movement with differential drive
- High-precision stopping accuracy
- Laser & TOF-based obstacle avoidance
- Support for LCD display and touch screen
- Manual or automatic charging with battery swap support
Specifications
| Specification | Value |
|---|---|
| Basic Parameters | |
| Model | ALR-W60-2L2T |
| Type | Latent Lifting AMR |
| Rated Load | 60 kg |
| Product Dimensions (L×W×H) | 710 × 510 × 305 mm |
| Rotation Diameter | 778 mm |
| Lifting Distance | 60 mm |
| Ground Clearance | 20 mm |
| Lifting Pallet Dimensions | 620 × 380 mm |
| Lifting Method | Motor-driven |
| Machine Weight | 170 kg |
| LCD Display | Supported |
| Touch Screen | Supported |
| Drive Method | Two-wheel differential drive |
| Navigation | QR code, texture, laser SLAM |
| Communication Mode | Wi-Fi |
| Mobility & Performance | |
| Maximum Operating Speed | 3.0 m/s |
| Max Acceleration (No Load) | 1.5 m/s² |
| Stopping Position Accuracy (No Load) | ±10 mm |
| Stopping Angle Accuracy (No Load) | ±1° |
| Climbing Ability | 3° / 5% |
| Obstacle Crossing Height | 10 mm |
| Safety & Obstacle Avoidance | |
| Obstacle Avoidance Method | Laser + TOF |
| Collision Bar Detection | Front & Rear |
| Emergency Stop Button | Front & Rear |
| Acoustic & Optical Alarm | Supported |
| Battery & Charging | |
| Rated Operating Time | 8.0 hours |
| Charging Time | 1.5 hours |
| Charging Mode | Manual / Automatic, manual battery replacement |
| Charge–Discharge Cycle Life | 1500 cycles |
| Operating Environment | |
| Operating Temperature | 0°C to 40°C |
| Charging Temperature | 0°C to 40°C |
| Operating Humidity | 5%–90% RH (non-condensing) |

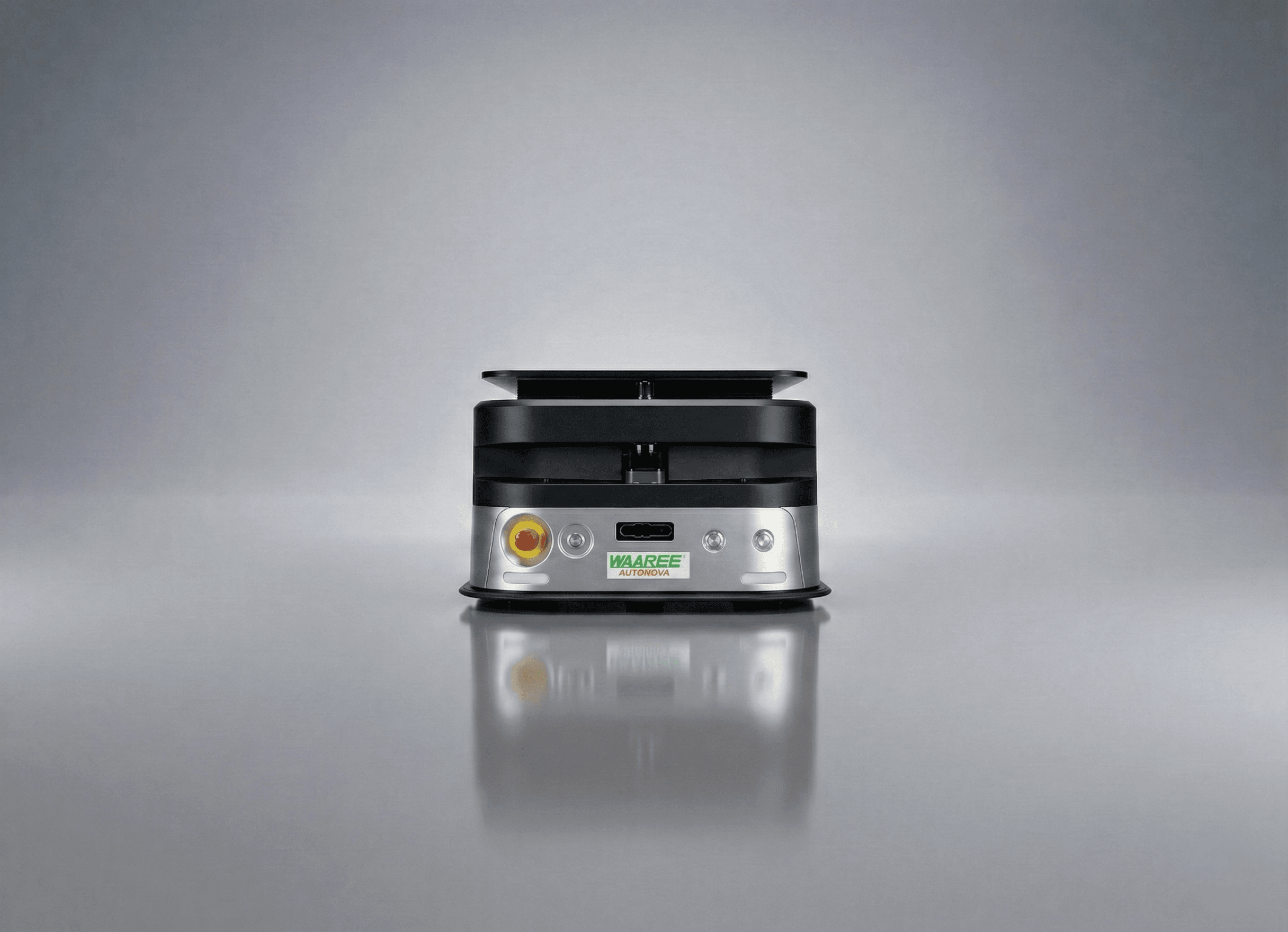

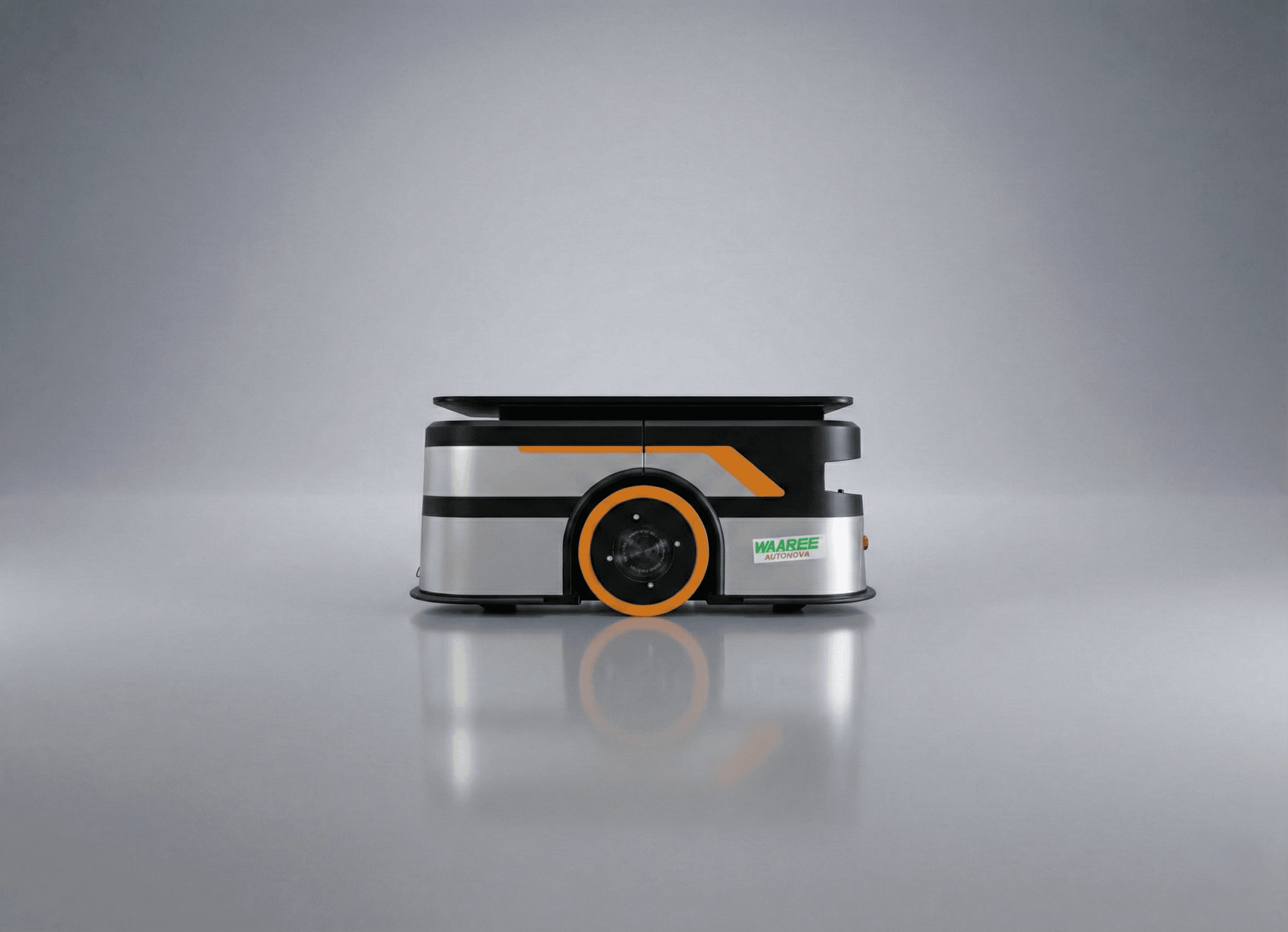

Gallery
