ALR-W600-2L2T

High-Throughput. Reliable. Industrial.

600 kg rated load capacity
Forward and backward movement with in-place rotation
High-throughput workhorse for industrial logistics
Compact footprint with 950 × 650 × 300 mm dimensions
Maximum speed up to 2.0 m/s

Overview

The ALR-W600-2L2T is designed as a high-throughput latent lifting AMR for continuous industrial material flow. It balances speed, stability, and load capacity, making it ideal for high-frequency warehouse and factory operations.

Features

Motor-driven latent lifting mechanism
Bidirectional movement with on-the-spot rotation
Optimized for high-duty cycle operations
Stable low-profile chassis
Industrial-grade safety architecture

Specifications

Specification	Value
Basic Parameters
Product Dimensions (L×W×H)	950 × 650 × 300 mm
Rotation Diameter	1000 mm
Lifting Distance	60 mm
Ground Clearance	20 mm
Lifting Pallet Dimensions	900 × 560 mm
Lifting Method	Motor
Machine Weight	170 kg
Rated Load	600 kg
LCD Display	Supported
Touch Screen	Supported
Navigation	QR Code / Texture / Laser SLAM
Communication Mode	Wi-Fi
Drive Method	Two-wheel differential drive
Mobility & Performance
Max Operating Speed	2.0 m/s
Max Operating Acceleration (No Load)	1.0 m/s²
Stopping Position Accuracy (No Load)	±10 mm
Stopping Angle Accuracy (No Load)	±1°
Climbing Ability	3° (5%)
Obstacle Crossing Height	10 mm
Safety & Obstacle Avoidance
Obstacle Avoidance Method	Laser + TOF
Collision Detection	Front & Rear
Emergency Stop Button	Front & Rear
Acoustic & Optical Alarm	Supported
Battery & Charging
Rated Operating Time	8.0 hours
Charging Time	1.5 hours
Charging Mode	Manual / Automatic + Manual Battery Replacement
Charge-Discharge Cycle Life	1500 cycles
Operating Environment
Operating Temperature	0°C to 40°C
Charging Temperature	0°C to 40°C
Operating Humidity	5%–90% RH (non-condensing)

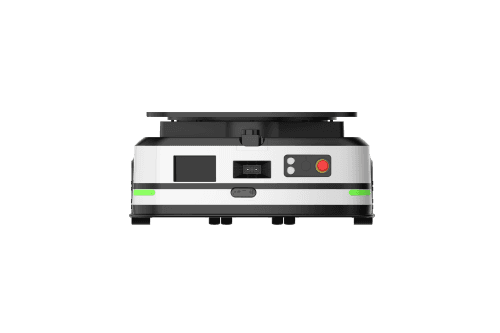

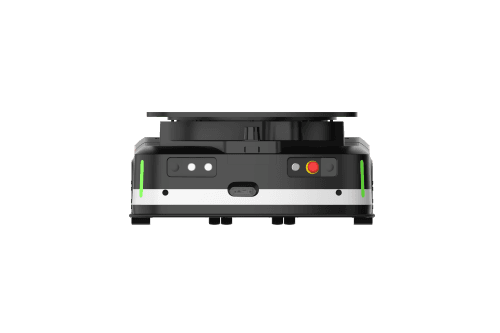

Gallery
