ALR-W1000-2L2T
Maximum Capacity Performance.
- 1000 kg rated load capacity
- Maximum capacity performance for industrial operations
- Forward and backward movement with in-place rotation
- Standardized chassis: 950 × 650 × 300 mm
- Maximum speed up to 1.5 m/s
Overview
The ALR-W1000-2L2T is a high-capacity latent lifting AMR built for demanding industrial material handling. Designed to transport loads up to 1000 kg with precision, it combines reliable SLAM navigation, stable motion control, and comprehensive safety features for large-scale warehouse and factory automation.
Features
- Motor-driven latent lifting mechanism
- Bidirectional movement with differential drive
- High-precision stopping accuracy
- Laser & TOF obstacle avoidance system
- Support for LCD display and touch screen
- Manual or automatic charging with battery replacement support
Specifications
| Specification | Value |
|---|---|
| Basic Parameters | |
| Model | ALR-W1000-2L2T |
| Type | Latent Lifting AMR |
| Rated Load | 1000 kg |
| Product Dimensions (L×W×H) | 950 × 650 × 250 mm |
| Rotation Diameter | 1000 mm |
| Lifting Distance | 60 mm |
| Ground Clearance | 20 mm |
| Lifting Pallet Dimensions | 900 × 560 mm |
| Lifting Method | Motor-driven |
| Machine Weight | 150 kg |
| LCD Display | Supported |
| Touch Screen | Supported |
| Drive Method | Two-wheel differential drive |
| Navigation | QR Code / Texture / Laser SLAM |
| Communication Mode | Wi-Fi |
| Mobility & Performance | |
| Maximum Operating Speed | 1.5 m/s |
| Max Acceleration (No Load) | 1.0 m/s² |
| Stopping Position Accuracy (No Load) | ±10 mm |
| Stopping Angle Accuracy (No Load) | ±1° |
| Climbing Ability | 3° (5%) |
| Obstacle Crossing Height | 10 mm |
| Safety & Obstacle Avoidance | |
| Obstacle Avoidance Method | Laser |
| Collision Bar Detection | Front & Rear |
| Emergency Stop Button | Front & Rear |
| Acoustic & Optical Alarm | Supported |
| Battery & Charging | |
| Rated Operating Time | 8.0 hours |
| Charging Time | 2.0 hours |
| Charging Mode | Manual / Automatic + Manual Battery Replacement |
| Charge–Discharge Cycle Life | 800 cycles |
| Operating Environment | |
| Operating Temperature | 0°C to 40°C |
| Charging Temperature | 0°C to 40°C |
| Operating Humidity | 5%–90% RH (non-condensing) |

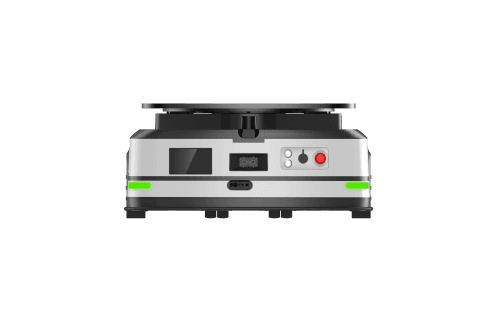

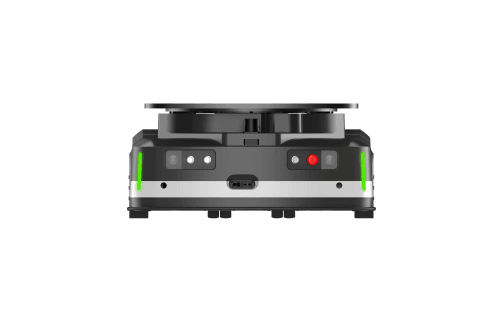

Gallery
